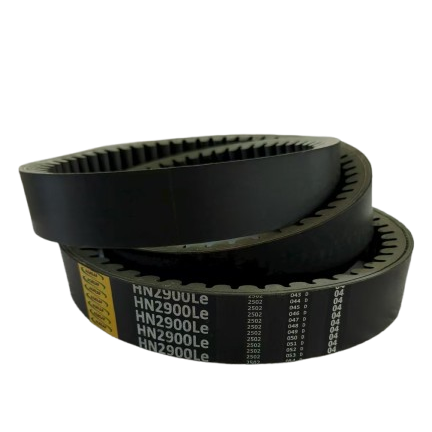

Direct Source: 26268120 Cogged V Belt for CLAAS HN2900Le with Aramid Cord

Direct Source: 26268120 Cogged V Belt for CLAAS HN2900Le with Aramid Cord

Every batch is tested to confirm it delivers the same fit and staying power as the original CLAAS part, so you can install it and confidently return to the field knowing the drive train will keep working harvest after harvest.

Marca :
Zhongliang, Liannong, Agreap, Rnupower, JDRE
Número de artículo :
HN
Certificado :
ISO9001, ISO14001, ISO45001 and ISO50001
Pago :
T/T
Origen del producto :
China
Puerto de embarque :
Shanghai Port, Ningbo Port, Tianjin Port, Lianyungang Port
plazo de entrega :
15-45 working days

Detalles del producto

This belt started life not on a drawing board alone, but inside the walls of our own 95，000‑square‑meter manufacturing campus. There, engineers who have spent decades studying agricultural drives worked alongside chemists in a CNAS‑certified lab to formulate a rubber compound that could survive the dust, heat, and relentless torque found inside CLAAS combine. The result is the 26268120 – a cogged V‑belt built to outlast ordinary replacements while delivering the exact performance intended.

Section	Dimensions		Manufacturing Length Range
Section	Top Width(mm)	Height(mm)	Min.(inch/mm)	Max.(inch/mm)
HN	57.2	25.0	78.7/2000	626/15900

What Makes It Different?

√ Aramid Cord That Refuses to Stretch: Most replacement belts use polyester cord, which gradually elongates under load and forces you to re‑tension the drive. Our belt uses parallel‑laid aramid filaments – the same material found in ballistic protection – to keep the belt dimensionally stable. Once you tension it, it stays tensioned.

√ Chloroprene Formulated for the Field: Standard rubber hardens and cracks when soaked in oil or baked by engine heat. Our lab‑developed chloroprene blend retains its flexibility from well below freezing up to high operating temperatures, and it shrugs off the abrasive dust that fills the air during harvest.

√ Cogged Profile, Cooler Running: The precision‑molded cogs on the inner circumference let the belt bend easily around the small pulleys of the drive. Less bending resistance means less internal friction, so the belt runs cooler and lasts longer – a critical advantage when the machine is running flat out.

√ Engineered Alongside the Original: Because we are a direct source supplier, we work from the same specifications as the original equipment manufacturer. The dimensions, the rubber hardness, the cord tension – everything is matched so that the belt drops into place and performs exactly as the original did when the combine was new.

Where it works?

✅ CLAAS Combine Harvester – primary and auxiliary drives

✅Any drive on a CLAAS combine that demands a cogged, high‑flex belt

✅ Applications where small pulley diameters and high cycle rates would quickly destroy a standard belt

Technical Specifications & Applications

Part Number: 26268120
Type: Cogged V-Belt
Primary Application: CLAAS Combine Harvesters
Core Tensile Member: High-Strength Aramid Cord
Cover Compound: Special Formula Chloroprene Rubber
Quality Validation: CNAS-Certified Laboratory tested

ETIQUETAS CALIENTES :

CLAAS Combine Belt 26268120

Oil Resistant Agricultural Belt

Kevlar Reinforced Agricultural Belt

Stretch Free V-belt

Reemplazo OEM para CLAAS

HN 2900Le Cogged Belt
